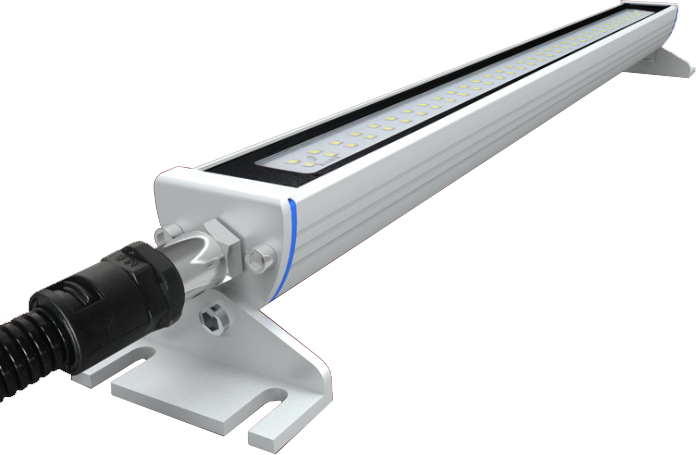

Good design for machine work lighting, inlcuding CNC Machines, drilling machines, and milling machines, as well for workbenches, assembly lines and task lighting.
SPECIFICATION:
Lamp Power: 10W/14W/20W/24W
Lamp Length: 300/400/600/800mm
Input Voltage: 24V/110-230V
CCT: 6000-6500K
CRI >80Ra
LM/W: 100-110
Beam Angle: 110°
Material: Anodized aluminum+Toughened glass

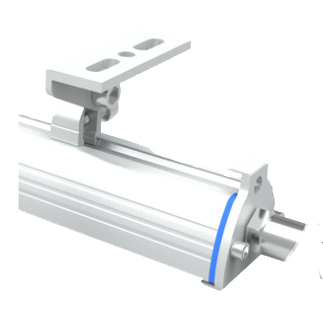

Mounting: Adjustable or fixed Brackets
Connection Method: wire
Protection Rating: IP65
FEATURES:
·Maintenance-free LED technology
·3times brightness of fluorescent lamps.
·up to 70% energy saving compared to fluorescent lights
·Resistant to oils or cooling lubricants
·Robust aluminium housing with solid safety glass screen
·Insensitive to shocks and vibrations
·IP65 protection level
·Adjustable or fixed bracket optional
Application: CNC Machines, drilling machines, and milling machines, as well for workbenches, assembly lines and task lighting
Overview of Model Number:
|
Model No. |
Lamp Power |
Voltage |
Color Temperature |
Lamp Length |
Bracket |
|
T5-10L6-300S |
10W 14W 20W 24W |
L: 24V H: 110V-220V |
6: 6000-6500K 4: 4000-4500K |
300mm 400mm 600mm 800mm |
S: Sliding F: fixed |
