 LED Surface Inspection Light / Defect Inspeation Light in Directional Light
 LED Surface Inspection Light / Defect Inspeation Light in Directional Light  LED Surface Inspection Light / Defect Inspeation Light in Directional Light  LED Surface Inspection Light / Defect Inspeation Light in Directional Light  LED Surface Inspection Light / Defect Inspeation Light in Directional Light  LED Surface Inspection Light / Defect Inspeation Light in Directional Light

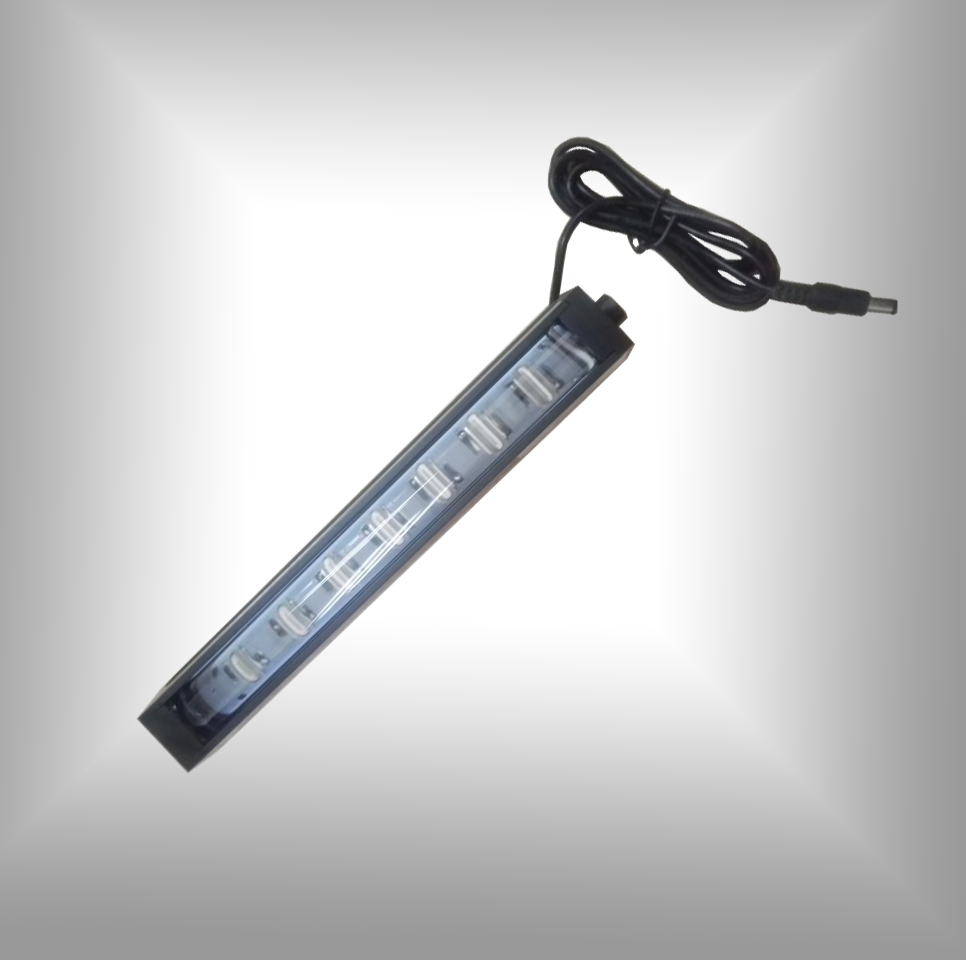

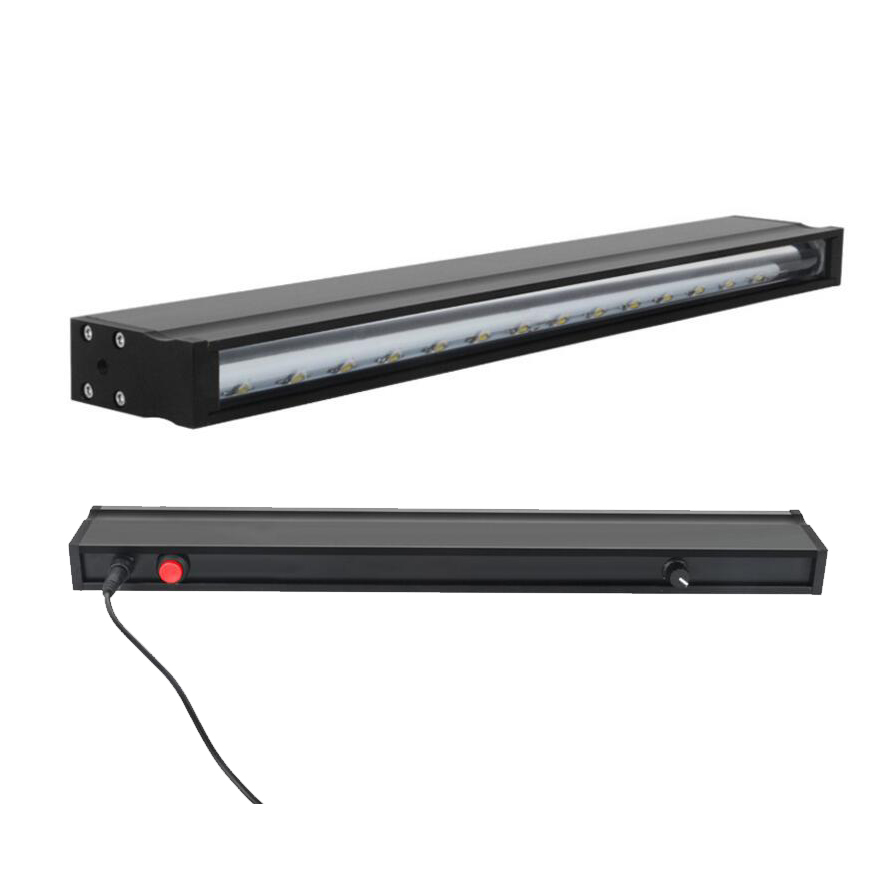

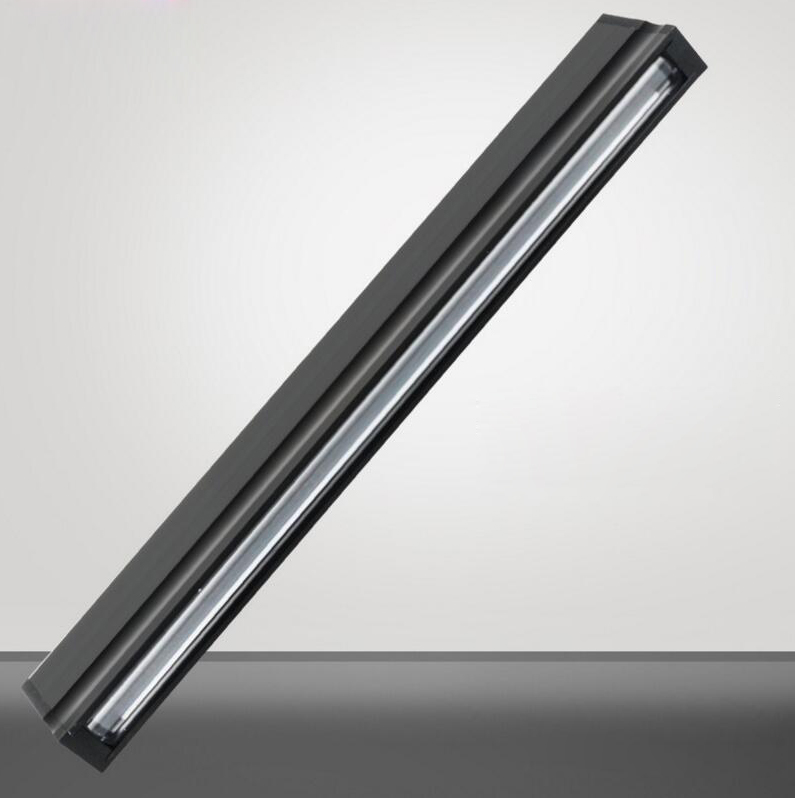

LED Surface Inspection Light / Defect Inspeation Light in Directional Light

Product ID : SI
Product Tags : LINEAR WORK LIGHT
Product Attributes :

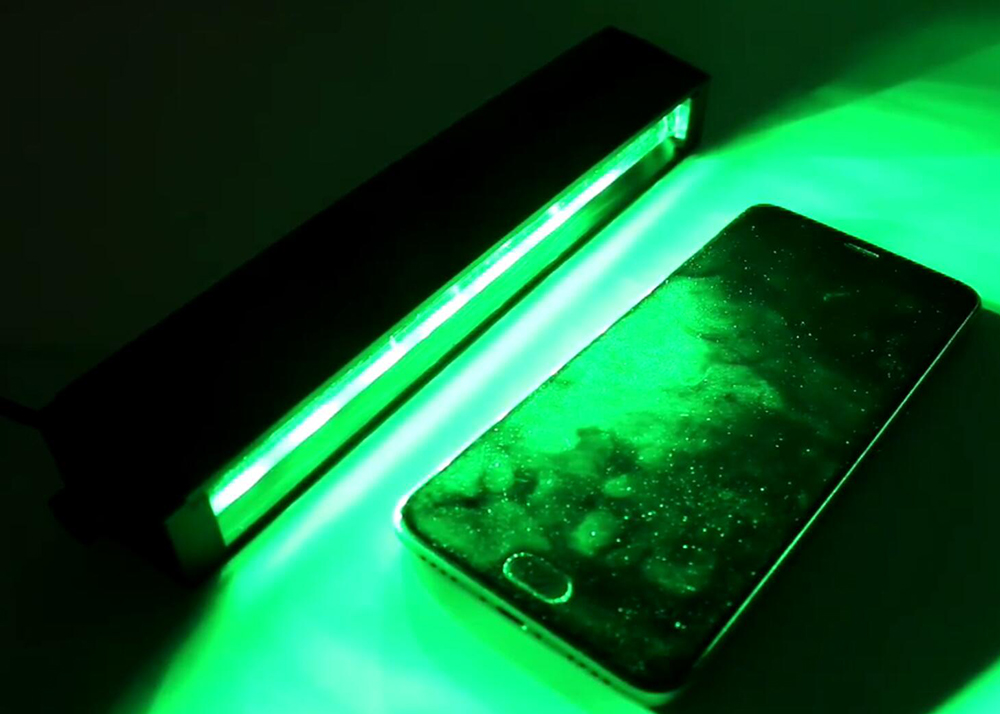

The LED surface inspection lamp will refract optical path on the surface of the workpiece, allowing the operator to visually identify dust, scratches, burrs, bumps, inks, etc. on the surface of the workpiece, replacing the traditional lighting equipment or optical machine.



Product Description

NAME: Defect Detection LED SURFACE INSPECTION LIGHT

Features:

1. Suitable for the inspection such as a strain, scratch, dirt, foreign substance, interference fringe etc on a Disc wafer and Liquid Crystal Glass.

2. You could clearly recognize such as the strain, dirt, scratch, minute particle etc even of less than 10 microns.

3. Giving only the most sensitive light for human eyes.

4. It is no flickering and quite harmless to the human eyes and body with the mild light.

5. The lamp's life time is about 30,000 hours by continuous using.

SPECIFICATION:

ELECTRIC Parameter:

Power: 14W

Input Voltage: 220V

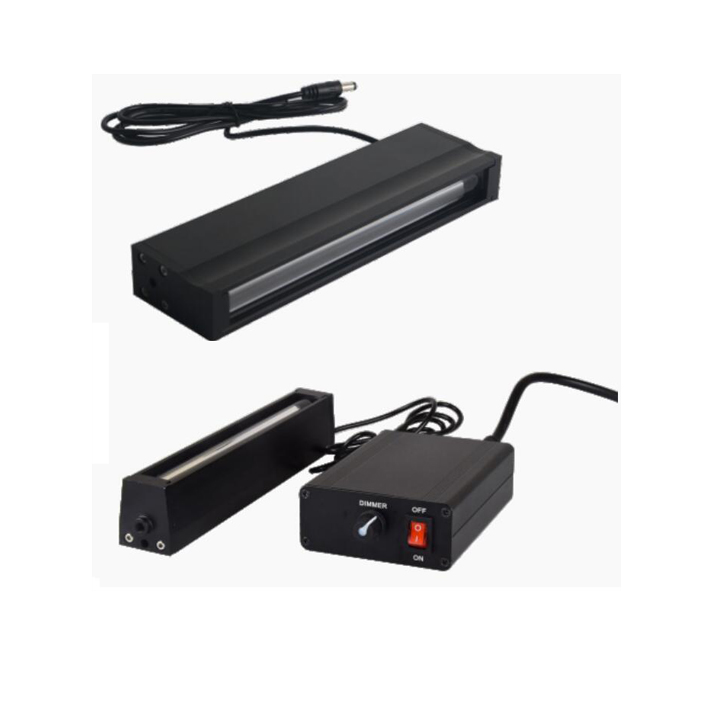

Controller(optional): built-in, external

OPTICAL Parameter:

Light Color (optional): Green, White, Yellow

CCT: 6000K (for white light color)

CRI>80Ra (for white light color)

Lumen: 95-105LM/W (for white light color)

Beam angle: 110⁰

STRUCTURE Parameter:

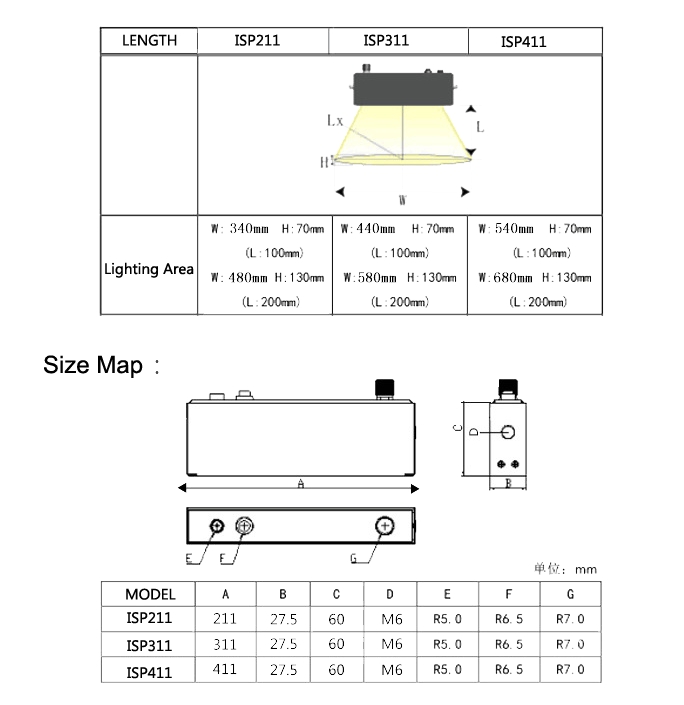

Size (optional): 211mm, 311mm, 411mm

Body material: aluminum

Lens: cylindrical glass lens

Protection Level: IP50
