SPECIFICATION:

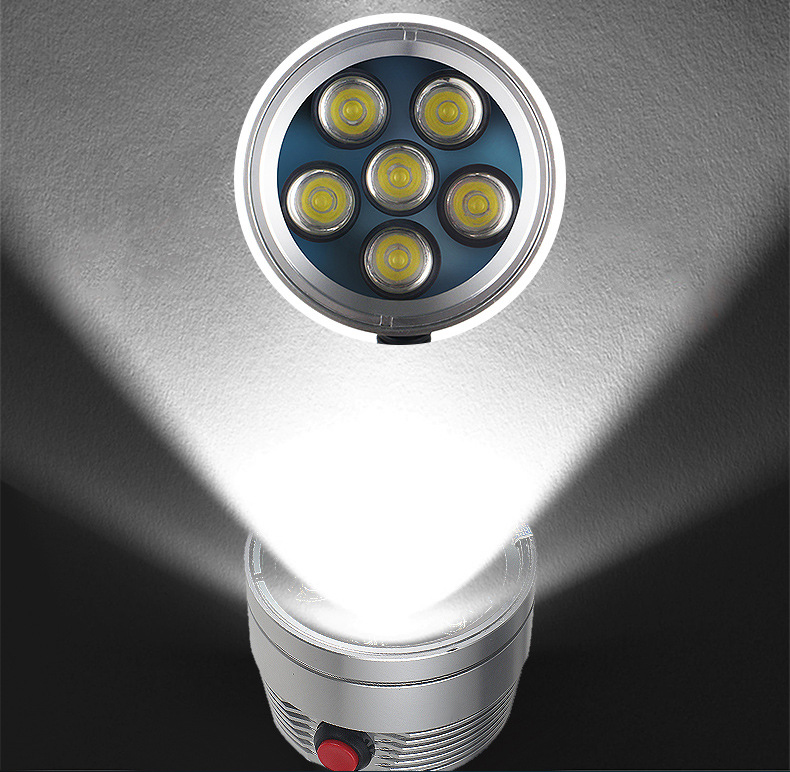

Lamp power(W) : 6W (6pcs SMD LED)
Input voltage(V) : 24V/110V/230V
CCT(K) : 6000-6500K(regular) (3000-3500K/4000-4500K customized)
CRI >80Ra
LM/W : 100-110
Beam angle : 60°
Head material : Anodized aluminum+Toughened glass
Lamp head color : Silver/ Black

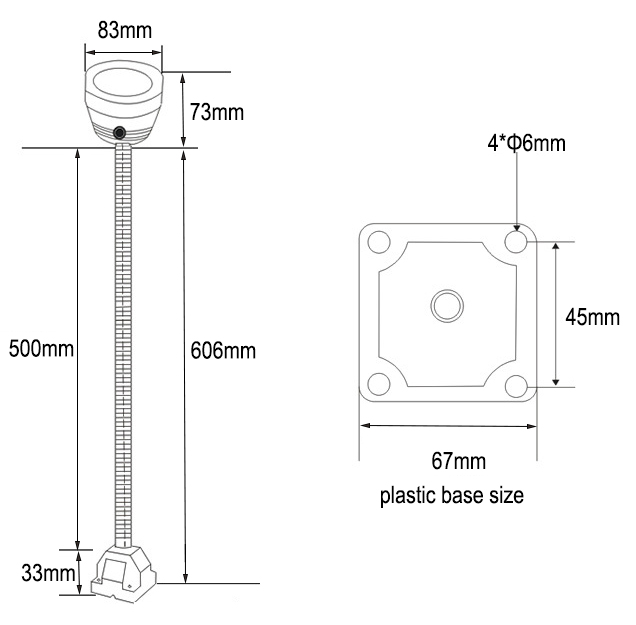

Goose-neck length : 500mm(regular) (700mm/800mm/1000mm customized)
Mounting : Surface mounted by plastic base
On/Off function : optional
Power Connection method: Wire terminal for 24V, wire terminal or plug for 110V/220V
Protection rating : IP65

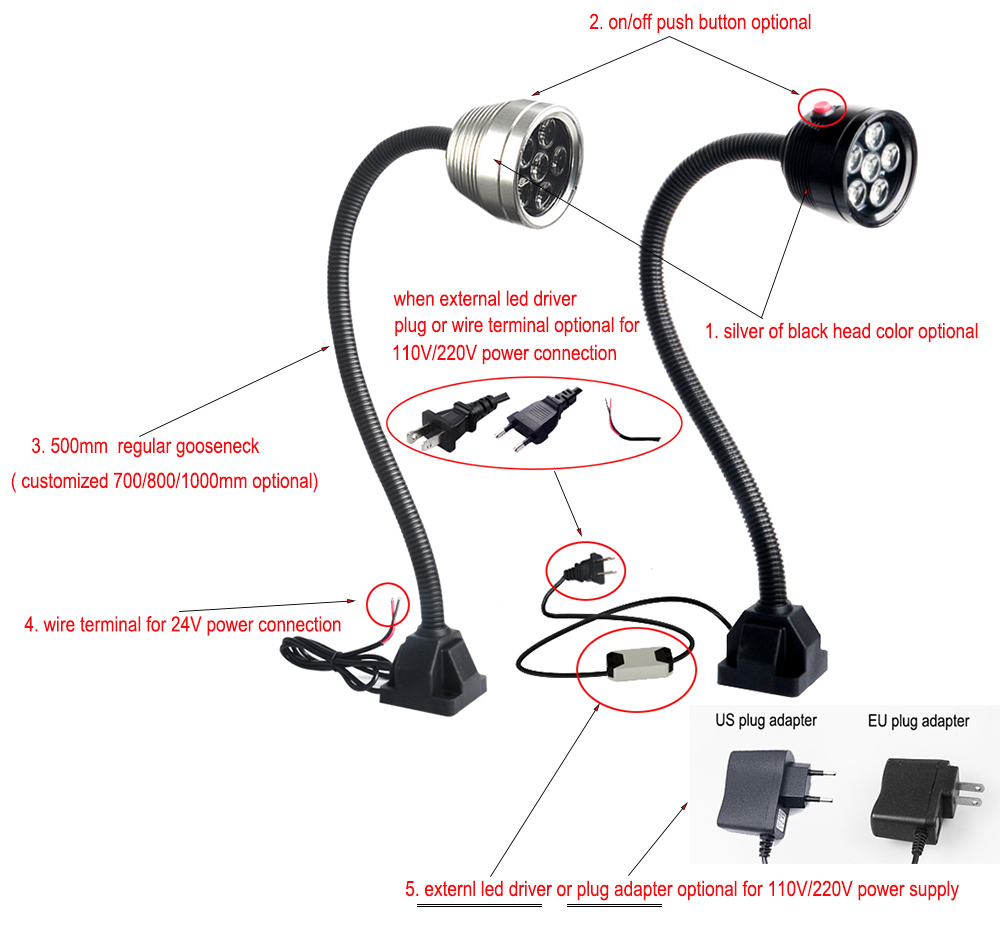

Features:

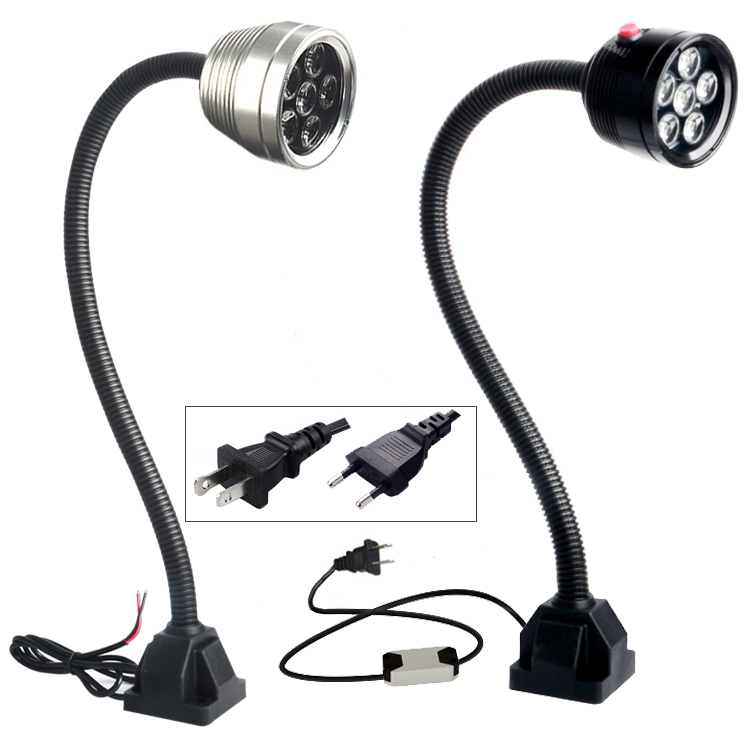

1. Silver or black head color optional
2. on/off push button optional
3. 500mm regular gooseneck (700/800/1000mm customized)
4. Power supply type:
A. built-in led driver for 24V.
B. extermal LED driver or plug adapter for 110V/220V
5. Power connection method:
A. wire terminal for 24V
B. wire terminal or plug for 110V(US plug)/220V(EU plug)
6. Resistant to oils or cooling lubricants
7. High-resistance against heat, wear and corrosion
Typical Applications:

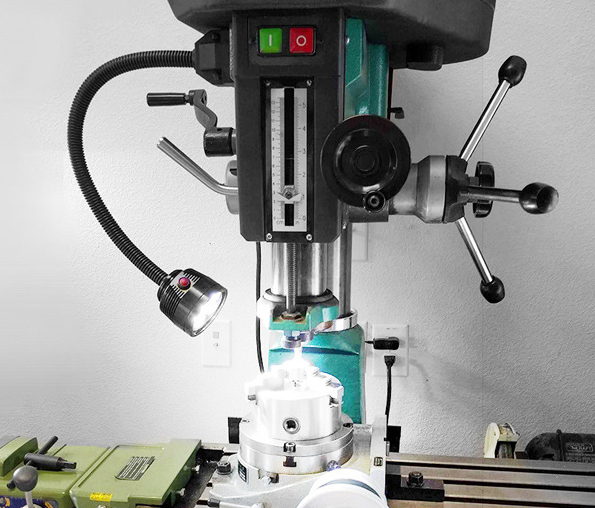

CNC Milling Machinery Lighting, EDM Machine Lighting, Lathe Lighting,
Injection Molding Machine Lights, Workstation Lighting, Inspection
Station Lighting
Overview of Model Number of G1 Gooseneck LED Work Lights:
Model No.
|
Power
|
Input Voltage
|
CCT
|
Head Color
|
Switch
|
Power Connection Method
|
Gooseneck Length
|
G1-6L6-BWW500
|
6W
|
L: 24V
H: external driver for 110-220V
A: plug adapter for 110-220V
|
6: 6000-6500K
4: 4000-4500K
3: 3000-3500K
|
B: black
S: silver
|
W: with
O: without
|
W: wire
E: EU plug
U: US plug
|
500mm
700mm
800mm
1000mm
|
