SPECIFICATION:
Lamp power(W) : 3W
Input voltage(V) : 24V/110(external driver)/220V(external driver)
CCT(K) : 6000-6500K
CRI : >80Ra
LM/W : 100-110
Beam angle : 30°
Body material : anodized aluminum
Body color : Silver/Black
Goose-neck length : 500mm/700mm
Mounting : surface mounted
Connection method : wire or plug
Protection rating : IP30
Features:·
· 500/700/800/1000/1200mm, five lengths of goose-neck for choice

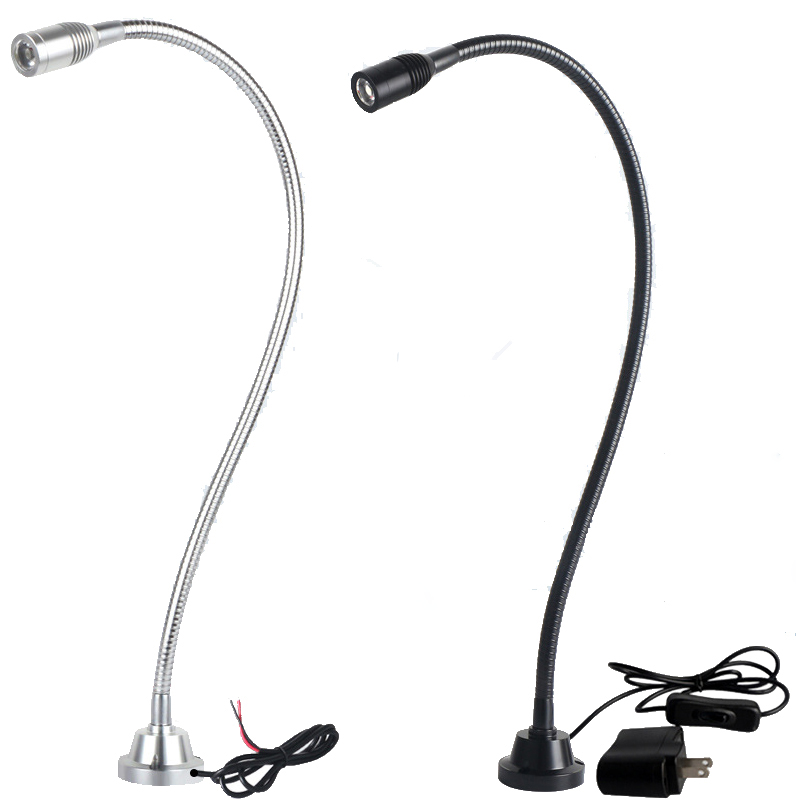

· Silver or black lamp body color optional
· 24V/110V(external driver)/220V(external driver) voltage input optional
· No switch for 24V; switch between wires for 110V/220V
· Wire connection for 24V, US plug for 110V and EU plug for 230V
Overview of Model Number with taking G21LS5 for example:
G21--Key model number
L--Input voltage (L: 24V, U:110V,E: 220V)
S--lamp body color (S: silver, B: black)
5--gooseneck length (5:500mm/7:700mm)
G21 LED task lights are designed for flexible spot lighting in smaller areas or confined spaces. With a single, high performance,
high output 3W LED, the G21 provides pinpoint accuracy and positioning for a wide variety of applications. Available with a
goose-neckarm, the small sizeallows for precise positioning to lighteven the darkest corner or very smallarea.

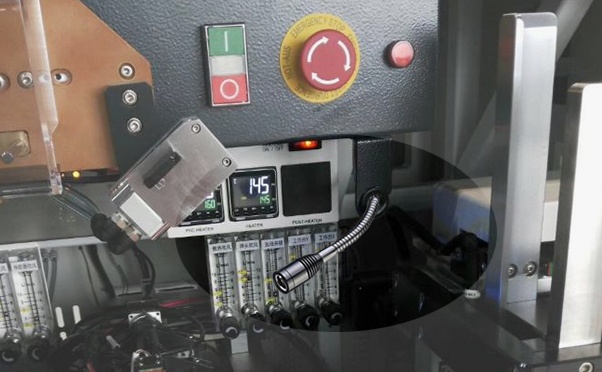

G21 is ideal for illuminating control panels, keyboards, drillapplications, bench and workstation inspection,control room
equipment, vision systems, manufacturing equipment, testareasand inspection areas
