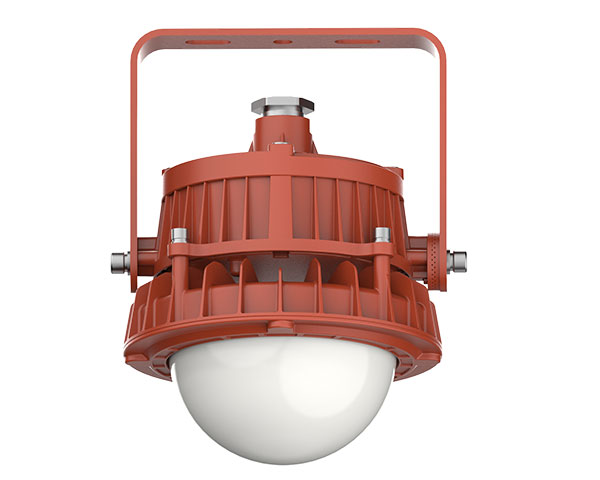

1. High-efficient 150lm/W LED fixture, 60% energy saved comparing with fluorescent fixtures.
2. Widely used for illumination on flameproof request areas such as marine platforms,chemical tankers,LNG ships,and hazardous cargo wharfs.
3. Reliable work for severe environment exposed in moisture,vibaration or Corrision.
4. Flameproof enclosure for Zones 1, 2, 21 and 22/ Class 1, Division 1/Class 1, Division 2 and temperature class T5.
5. High degree of protection IP66 for harsh environments.
6. Passed Salt Spray test 500H.
7. Integrated battery back-up provides 90mins long duration of emergency lighting.
| Model No. | HL180-30W | HL180-50W | HL180-50W (Emergency) | |
|---|---|---|---|---|
| Power | 30W | 50W | 50W | |
| Product Dimension | Tempered clear glass | Φ182*141mm | Φ182*141mm | Φ182*163mm |
| PC milky cover | Φ182*200mm | Φ182*200mm | Φ182*222mm | |
| Efficiency | 150lm/W (Tempered clear glass), 120° | |||
| Luminous Flux (±10%) | 4500±300lm | 7500±500lm | 7500±500lm | |
| Efficiency | 130lm/W (PC milky cover)，170° | |||
| Luminous Flux (±10%) | 3900±300lm | 6500±500lm | 6500±500lm | |
| CCT | 3000K；4000K；5000K；5700K | |||
| Ingress Protection | IP66 | |||
| IK Grade | IK10 | |||
| Wind Resistance | LV.12 | |||
| Color Rendering Index | Ra＞70 | |||
| Beam Angle | 120° (Tempered clear glass)、170° (PC milky cover) | |||
| Driver Brand | TOMCARLINE | |||
| Input Voltage | AC120-277V | |||
| Power Factor | ＞0.95 | |||
| Frequency | 47-63HZ | |||
| Driver Type | Constant Current (CC) | |||
| Luminaire Net Weight | 2.5kg | 2.5kg | 3.7kg | |
| Packing Information | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | |
| Export Carton Size | 23.5*23.5*29.0cm | 23.5*23.5*29.0cm | 23.5*23.5*29.0cm | |
| Gross Weight | 3.1kg | 3.1kg | 4.3kg | |
| Dimensions of the cable inlet | M25×1.5mm | |||
| Wire diameter of sealing ring | Φ10.2mm-Φ9mm，Φ14.2mm-Φ13mm | |||
| Emergency driver | Emergency power＞5W，Emergency driver runtime＞90min(Ta=10℃-60℃) | |||
| Material | Housing | 6063-T5、ADC12 | ||
| Optics | Tempered clear glass/ PC milky cover | |||
| Finish | Powder Coating | |||
| Fixture Color | Red | |||
| Mounting Option | Pipe installation, Shaped metal tube installation, Ceiling installation, Base mount installation | |||
| Storage temperature range | -30℃ - +60℃ | |||
| Storage humidity range | 85% max. | |||
| Operating temperature range | -20~+50℃ | |||
| Operating humidity range | 85% max. | |||
| Life Time | 50.000 hours | |||
| Warranty | 5 Years | |||
