HANNSTAR INDUSTRY COMPANY LIMITED
1. LED light source inside
2. From 1 layer to 5 layers optional
3. 24V or 220V/110V available.
4. With buzzer alarm.
5. straight base or folding base
6. Red light flashing, others burning steadily.

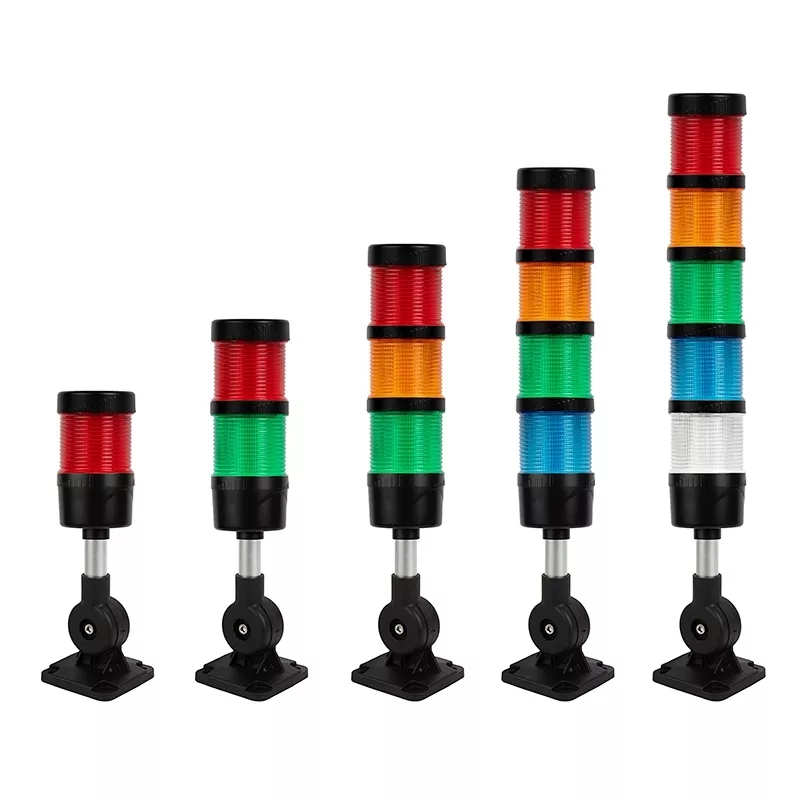

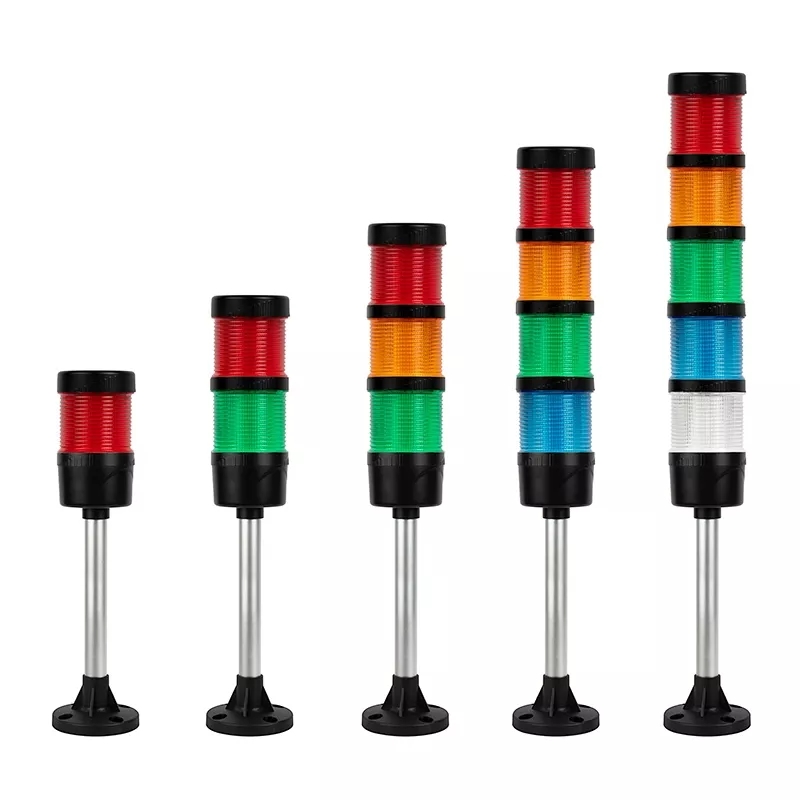

Specification of ML type Multi-layer LED Tower Light Machine Signal Light
A: Constant Parameter
1. With Buzzer alarm
2. Red light flashing, others burning steadily.
3. Wiring: NPN and PNP both OK for 24V, and ontact type for 110V or 220V
B: Optional Parameter
1. Layer NO.: 1 layer (code 1), 2 layers (code 2), 3 layers (code 3), 4 layers (code 4), 5 layers (code 5)
2. Input Voltage: 24V(code L2)/110V(code H1)/220V(code H2)
3. Mounting type: folding base (code F)/straight base (code S)
| Model | Layer no. | Voltage | Mounting |
| ML-1L2-F | 1 | 24 | folding base |
| ML-1L2-S | 1 | 24 | straight base |
| ML-1H1-F | 1 | 110 | folding base |
| ML-1H1-S | 1 | 110 | straight base |
| ML-1H2-F | 1 | 220 | folding base |
| ML-1H2-S | 1 | 220 | straigtht base |
| ML-3L2-F | 3 | 24 | folding base |
| ML-3L2-S | 3 | 24 | straight base |
| ML-3H1-F | 3 | 110 | folding base |
| ML-3H1-S | 3 | 110 | straight base |
| ML-3H2-F | 3 | 220 | folding base |
| ML-3H2-S | 3 | 220 | straight base |
