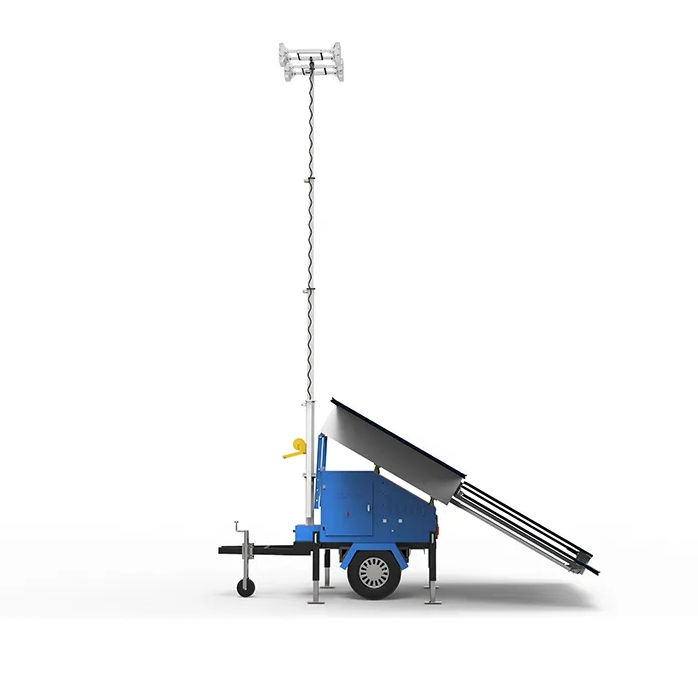

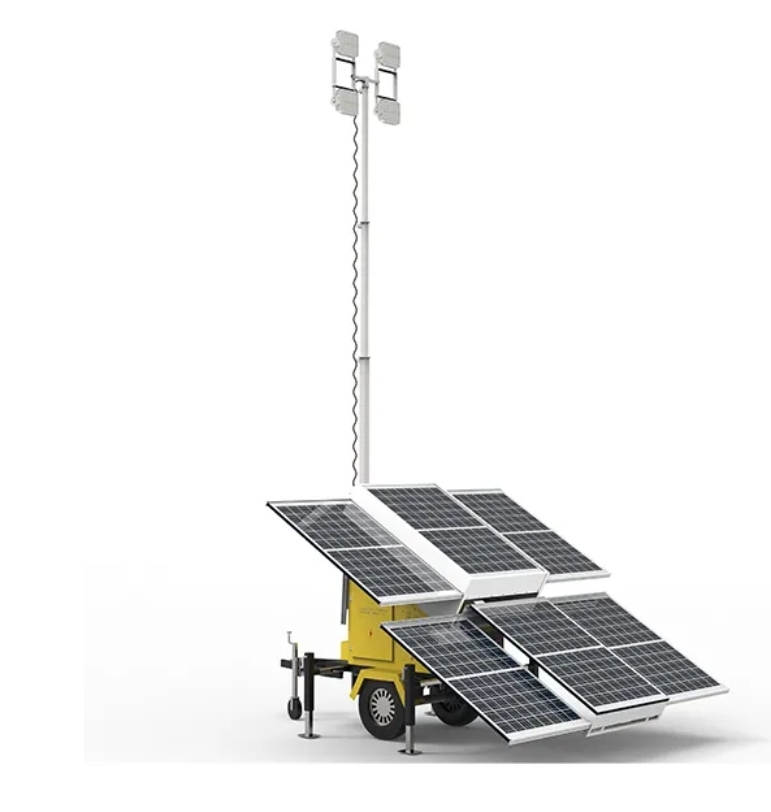

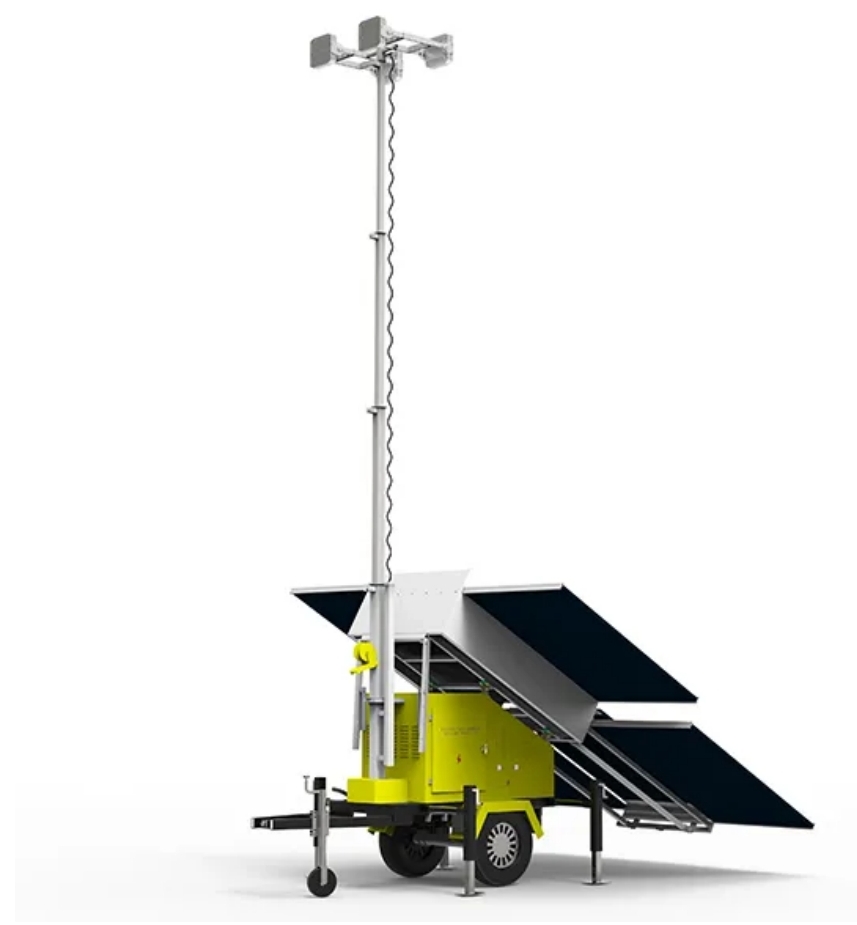

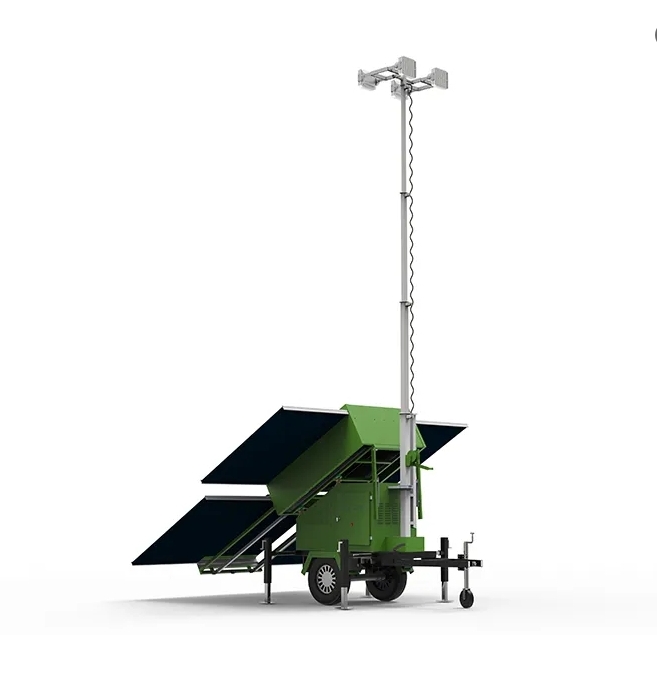

LT-9LM is a high-performance mobile solar light tower designed for versatile outdoor applications. Featuring 4×200W LED floodlights, 6×460W monocrystalline solar panels, and a 9-meter manual lifting mast, this system delivers powerful illumination with zero fuel consumption and minimal maintenance. It’s built for remote job sites, emergency rescue, outdoor events, construction zones, and military or disaster relief operations, offering a reliable, eco-friendly lighting solution even in off-grid environments.
Bright & Efficient Lighting: Equipped with 4×200W LED floodlights, providing up to 128,000 lumens of powerful, wide-area illumination.
Solar Powered & Off-grid: Uses 6×460W high-efficiency monocrystalline solar panels (≥21.5%) to convert sunlight into energy, ensuring green and autonomous operation.
Long Runtime & Large Battery Capacity: Built-in 8×12V/200Ah lead-acid batteries (total 19,200Wh), supporting up to 19.2 hours of continuous lighting.
Smart Controls: MPPT controller with light sensing, time scheduling, 4G remote, and manual control options.

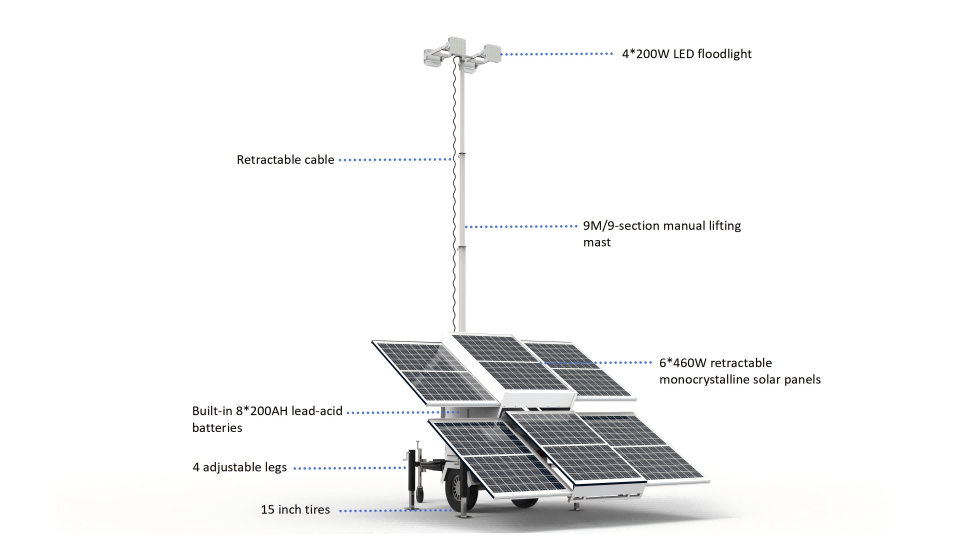

Robust Structure: Features a 9-meter, 9-section manual lifting mast, wind resistance up to level 8, and a trailer system with 15-inch tires and 4 adjustable support legs for stability and mobility.
All-Terrain Ready: Integrated with single-axis trailer, 50mm ball or 70mm ring towing hook, and compact design for easy transport and deployment.
Wide Operating Temperature: Works reliably in extreme climates, from -35°C to 60°C.
| Model | LT-9LM |
| Light Source | |
| Light Source Type | LED Floodlight |
| Light Source Power | 4*200w |
| Luminous Flux | 128000lm |
| Color Temperature | 3000K-6500K |
| Life | ≥50000h |
| Photovoltaic | |
| Photovoltaic Type | Monocrystalline silicon |
| Photovoltaic Model | 6*460W |
| Photovoltaic Power | 2760W |
| Highest Efficiency | ≥21.5% |
| Battery | |
| Battery Type | Lead Acid/Gel |
| Battery Model | 8*12V/200AH |
| Battery Capacity | 19200Wh |
| Battery Efficiency | ≥80% |
| Controller | |
| Controller Type | MPPT |
| Controller Model | 48V/60A |
| Control Method | Light control/time control/4G remote control/manual control |
| Mppt Tracking Efficiency | ≥99% |
| Lifting Rod | |
| Lifting Rod Type | Manual/Pneumatic/Electric |
| Lifting Rod Height | 9m |
| Maximum Load | 40KG |
| Wind Resistance Level | Level 8 |
| Trailer | |
| Number Of Axes | Single axis |
| Tire | 15 inches |
| Support Leg | 4pcs/manual |
| Towing Hook | 50mm ball/70mm ring |
| Basic Parameters | |
| Operating Temperature | -35℃-60℃ |
| Charging Time | 5.6h |
| Run Time | 19.2h |
| 20-foot container/40-foot container packing quantity | 2 units/4 units |
| Optional | Charger, inverter, fan, generator, lithium battery |
In addition to the above configurations, we can also provide other configurations of mobile solar lighthouses.
