SPECIFICATION:
Lamp power(W): 10W/14W/20W/24W
Lamp Length(mm): 300/400/600/800mm
Input voltage(V): 24V/110-230V
CCT(K): 6000-6500K
CRI >80Ra
LM/W: 100-110
Beam angle: 110°
Material: anodized aluminum+Toughened glass
Mounting: adjustable or fixed Bracket
Connection method: wire
Protection rating: IP65
FEATURES:
· Maintenance-free LED technology
· 3 times brightness of fluorescent lamps.
· up to 70% energy saving compared to fluorescent lights
· Resistant to oils or cooling lubricants
· Robust aluminium housing with solid safety glass screen
· Insensitive to shocksand vibrations
· IP65 protection level

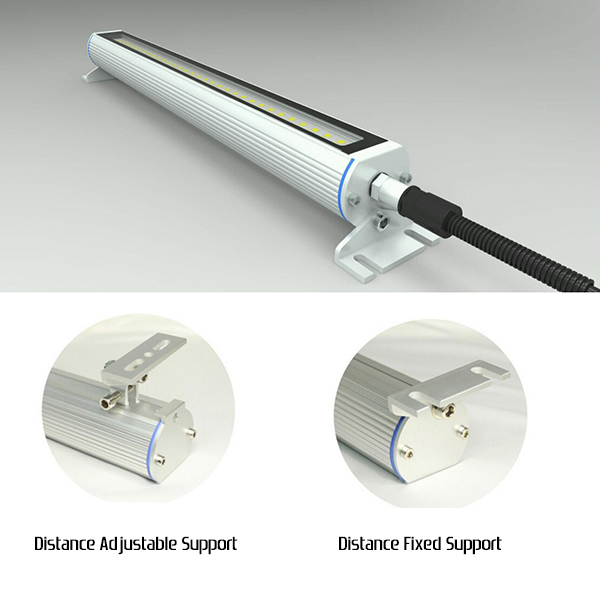

· Adjustable or fixed bracket optional

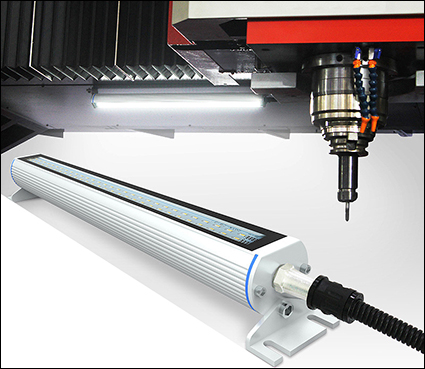

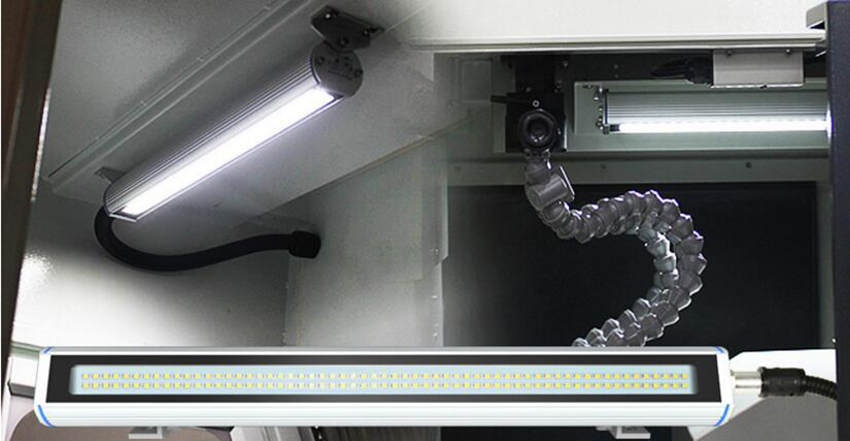

Application: CNC Machines, drilling machines, and
milling machines, as well for workbenches, assembly
linesand task lighting
OverviewofModel Number withtakingT50-300LAforexample:
T50--Key model number
300--Lamp length ( 300/400/600/800mm)
L-----input voltage (L: 24V, H: 110-230V)

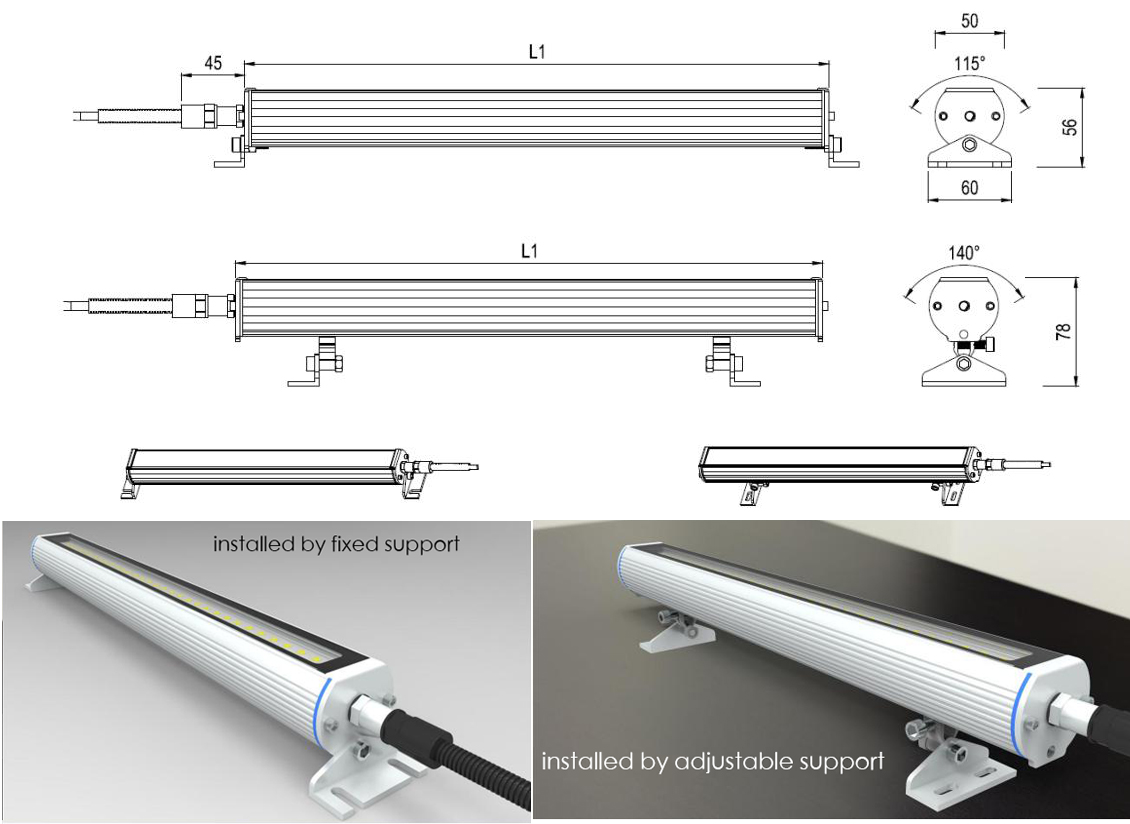

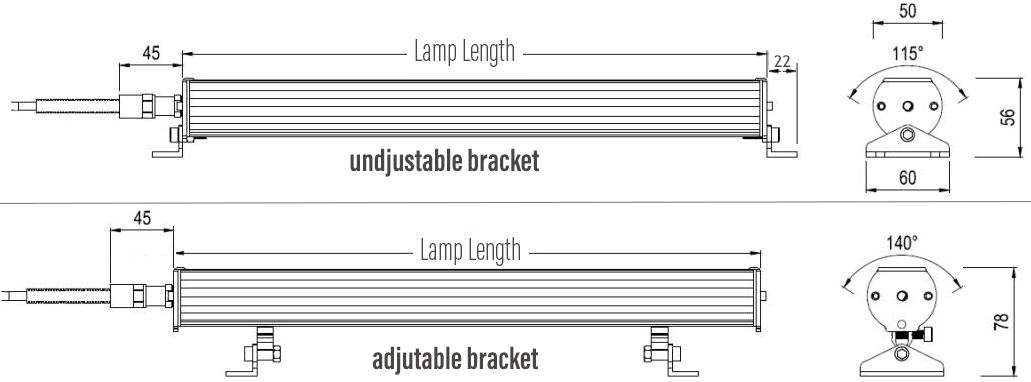

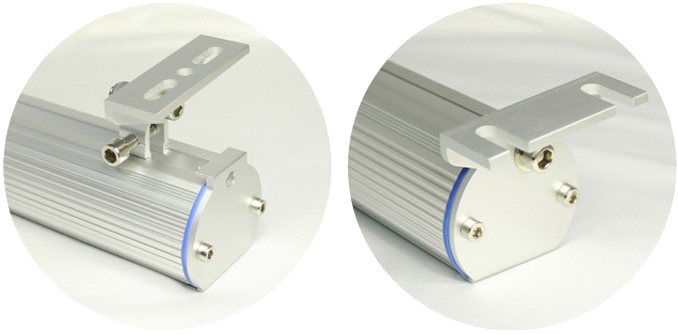

A--bracket type (A:adjustable, F: fixed)
